A picture hanging system is a popular method to display pictures and allows you to hang several frames, pictures and other pieces of art as a gallery wall. Depending on the size, thickness and weight, certain frames may tilt when displayed using a hanging system.

As a general rule, a frame will always hang more steadily if 2 hanging wires and 2 hanging hooks are used.

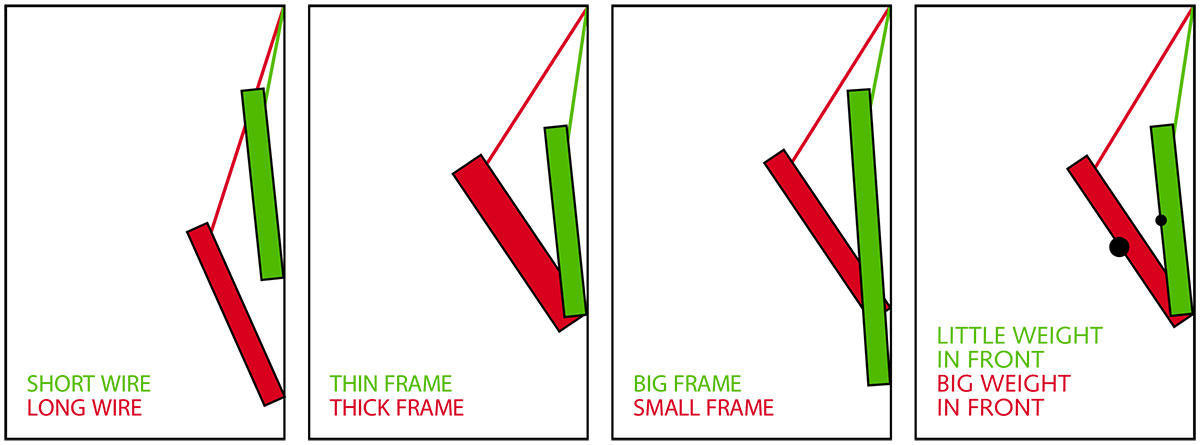

The following factors should be taken into consideration:

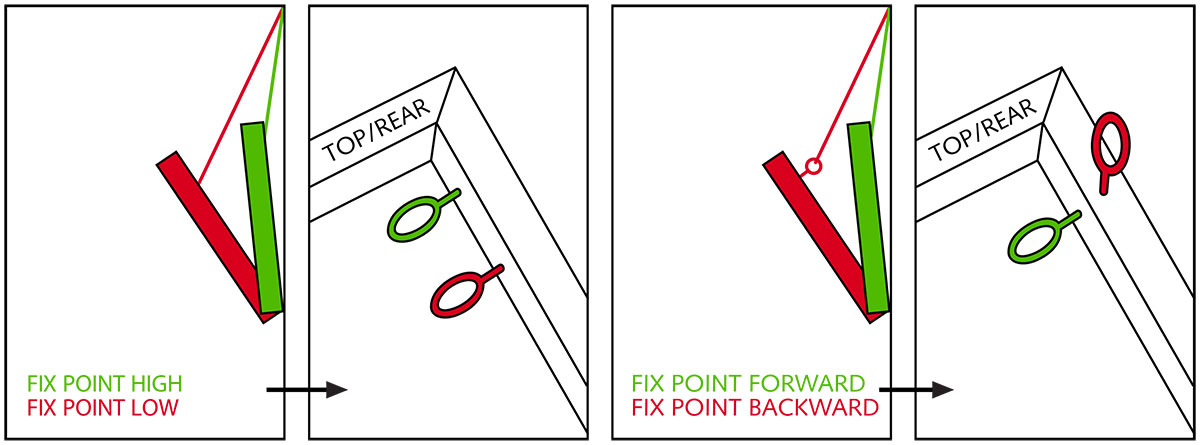

The tilting effect can also be reduced by adjusting the fix point on the frame:

Using picture frame bumpers will push the lower corners of a frame away from the wall to protect it and reduce tilting at the top of the frame.

In addition, the Tilt Reducer may be used to further reduce any unwanted tilting of the frame. It can be easily attached to the back of the frame and holds the top of the frame close to the hanging wire. Thereby stabilising the frame and drawing it closer to the vertical.

The tilt reducer fixes singly or as a pair to the top of a wooden or polymer frame, aligned over the hanging point of the hook(s). The hanging wire clips into the guide and is positioned by the indexing pips.

The maximum weight capacity for each track as mentioned in the product specific details.

Weight Capacity 20 kg per metre:
Newly Rail R10 (wall-mounted)
Newly Rail R40 (ceiling-mounted)

Weight Capacity 30 kg per metre:
Newly Rail R20 (wall-mounted)

Weight Capacity 50 kg per metre:
Artiteq Click Rail Pro (wall-mounted)

A hanging system consists of 3 elements.

1. Picture Rail or Track
We have several options available which are either wall- or ceiling mounted. Ceiling-mounted tracks can support a maximum load of 20 kg per meter. For wall-mounted tracks, the load capacity varies from 20 kg to 100 kg per installed meter, depending on the specific track chosen.

2. Wire, Cord or Rod
Once the track is installed, you can attach a wire, cord, or rod, also known as a suspender, which you can move along the entire length of the rail to position your artwork as desired. The suspenders come in various lengths from 150 cm to 500 cm, and you can select from different types, including clear perlon cords or steel wires. The maximum load capacity for each suspender ranges from 15 kg to 20 kg, depending on the type selected. The rod, made from 4x4 mm aluminum, can support up to 20 kg. If two suspenders are utilized, the maximum load capacity is effectively doubled.

3. Picture Hook
The third component is the picture hook, which attaches to the suspender. We provide a diverse selection of hooks with varying maximum load capacities. You can choose between self-gripping and screw-locking hooks, along with security hooks for added safety. The hook serves as the connection point between your artwork and the hanging system.

Regardless of the type of fixation on the back of your artwork, frame, or object, we have the perfect hook to meet your needs. Our systems are designed to be versatile and adaptable, enabling you to create captivating displays that can be easily adjusted.

You can view and download the installation manual on the product page in the document downloads section for each track. The rail specific fasteners are included when you order a Picture Hanging Track.

You can determine the right amount based on how many pieces of art you plan to showcase.

As a general guideline, we recommend using 2 cords and 2 hooks for each individual artwork to ensure a secure and balanced presentation. However, if you're looking to create a stunning vertical arrangement, you can hang multiple pieces from the same cord, provided you stay within the maximum load capacity. This means you can create beautiful groupings, like 1-up, 2-up, or even 3-up displays. Just keep in mind that more hooks will be necessary for these configurations. Additionally, for paintings that are wider than 60 cm, we advise using 2 hooks and 2 cords to guarantee that your artwork hangs level and looks its best.

Consider the potential benefits of keeping the little extra length of a wire or cord before cutting it. You never know when that additional length might come in handy down the road. If you find yourself with some visible excess, a clever solution is to neatly roll it up and discreetly tuck it behind your artwork or object. To secure it in place, you can use an elastic band, a bit of tape, or a cable tie. This way, if you ever need a longer cord in the future, you'll have that extra length readily available at your fingertips.

Alternatively, perlon cords can be easily cut using a sharp retractable knife, scissors, or diagonal pliers. However, we strongly advise against cutting steel wires, as the cutting point requires special treatment beforehand. Without proper care, the wire may begin to fray, making it nearly impossible to attach hooks.

Yes, you can mix different hanging wires and cords on the same track. If it comes to mixing rods with hanging wires & cords, the Newly R30 is the only hanging track compatible to do so.

Yes, you can certainly hang multiple pictures using a single cord or wire. To do this effectively, simply attach multiple picture hooks along the cord or wire. However, it is crucial to ensure that you do not exceed the maximum weight capacity of the cord or wire. Additionally, bear in mind the weight limits specified for your chosen picture rail to ensure safe and secure hanging.

No, we do not impose a minimum order quantity on our products. Each item is available for individual purchase, allowing you the flexibility to order exactly what you need. However, to qualify for free shipping, your total order must reach a minimum value of AED 150.00, including VAT.

We strive to provide a seamless shopping experience, whether you are looking to buy a single product or multiple items. Feel free to browse our extensive selection and shop according to your preferences.

We partner with Kara Express for all our deliveries, with the exception of export shipping. For domestic orders within the UAE, there is a minimum shipping fee of AED 29.00 and maximum fee of AED 39.00, depending on the length. Free shipping will be applied automatically to your order if the order value reaches AED 150.00. If you prefer, you can also opt to pick up your order directly from our warehouse located in Umm Ramool, Dubai.

Please request an induvial quote for export shipments.

Our delivery charges cover all aspects of your order's journey. This includes the cost of packaging, handling, shipping, and any necessary customs or export documentation to ensure a smooth delivery process. Our delivery charges do not include any customs duties or taxes for export shipments to other countries.

We aim to keep our inventory stocked up so that almost all of our orders are shipped complete from our warehouse in Dubai. Typically, you can expect your order to arrive within 2 to 3 business days. The lead time is also specified on the product page for each item.

Yes, as part of our standard procedure, once your order has been shipped, you will receive an email containing your tracking number. This allows you to easily monitor the status of your shipment.

No worries, we ship to all Emirates within the UAE. No matter if you live in Abu Dhabi, Dubai, Sharjah, Ajman, Umm Al Quwain, Ras Al-Khaimah or Fujairah, your order will be shipped to you at the same shipping cost for all Emirates.

Yes! You can enquire about product samples via email. Just drop us a line at info@ahs-trading.ae.
